Model Name

KRvision

CPU

Core™ i7-7500U (Kaby Lake-R，Kaby Lake-U，

support Intel /6/7/8 Generation)

Memory

1 x SO-DIMM slot , DDR4

1333/1600MHz , Maximum support 16GB

Storage

1 x SATA 7Pin 3.0 (6Gb/s) Connector;

Full size mSATA

Expansion Slot

1 x PCIE Connector (Full size mSATA;

Half size WLAN/Bluetooth);

1 x mSATA Connector

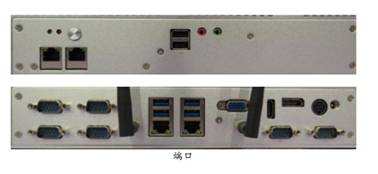

Front I/O

2 x USB 3.0;

2 x RJ45 1000Mbps LAN

1 x Audio in / 1x Audio out

1 x HDD Led
1 x Power button

Rear I/0

2x RJ45 10/100/1000Mbps Lan
1x HDMI;

1 x DP

1 x VGA,

2 x USB 3.0,

2 x USB 2.0

6 x SIO
1 x 12V DC Jack

OS

Ubuntu16.04/Windows 10

Power supply

AC Adapter 19V/5A DC

Dimensions (mm)

310 x 180 x 68
